PCT-200: The programmable controller trainer
The solution for hands-on activities in the areas of automation technologies, inlcuding programmable controllers, digital I/O, analog I/O and human machine interface.
PCT-200: The programmable controller trainer

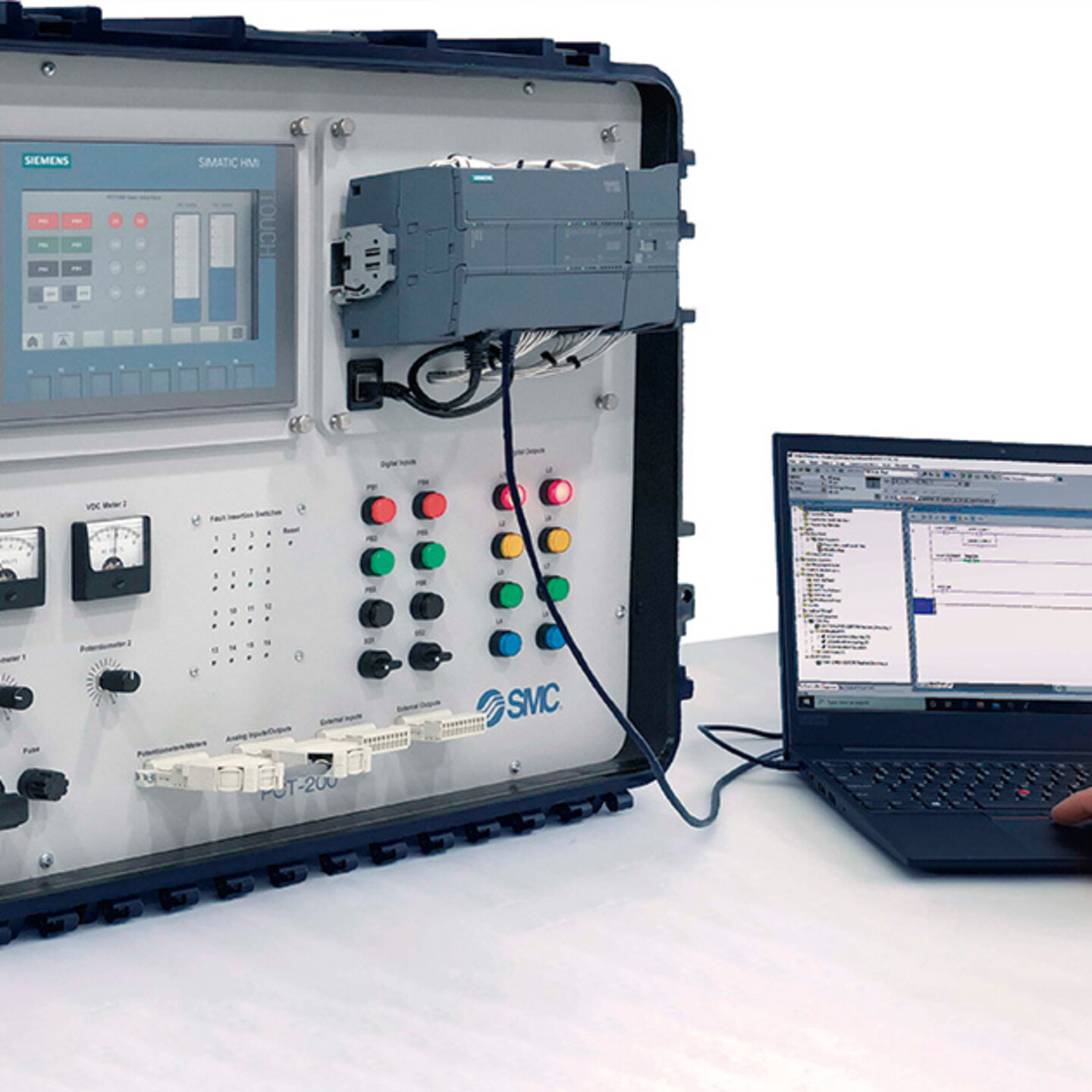

This system is designed to provide a solution for hands-on activities in the areas of automation technologies, including programmable controllers, digital I/O, analog I/O and human machine interface. This unit is provided in a hard-shell suitcase with integrated casters and handle. There is also a table top option. The unit includes 2 external connection blocks that allow any external I/O devices to be connected directly to the controller.

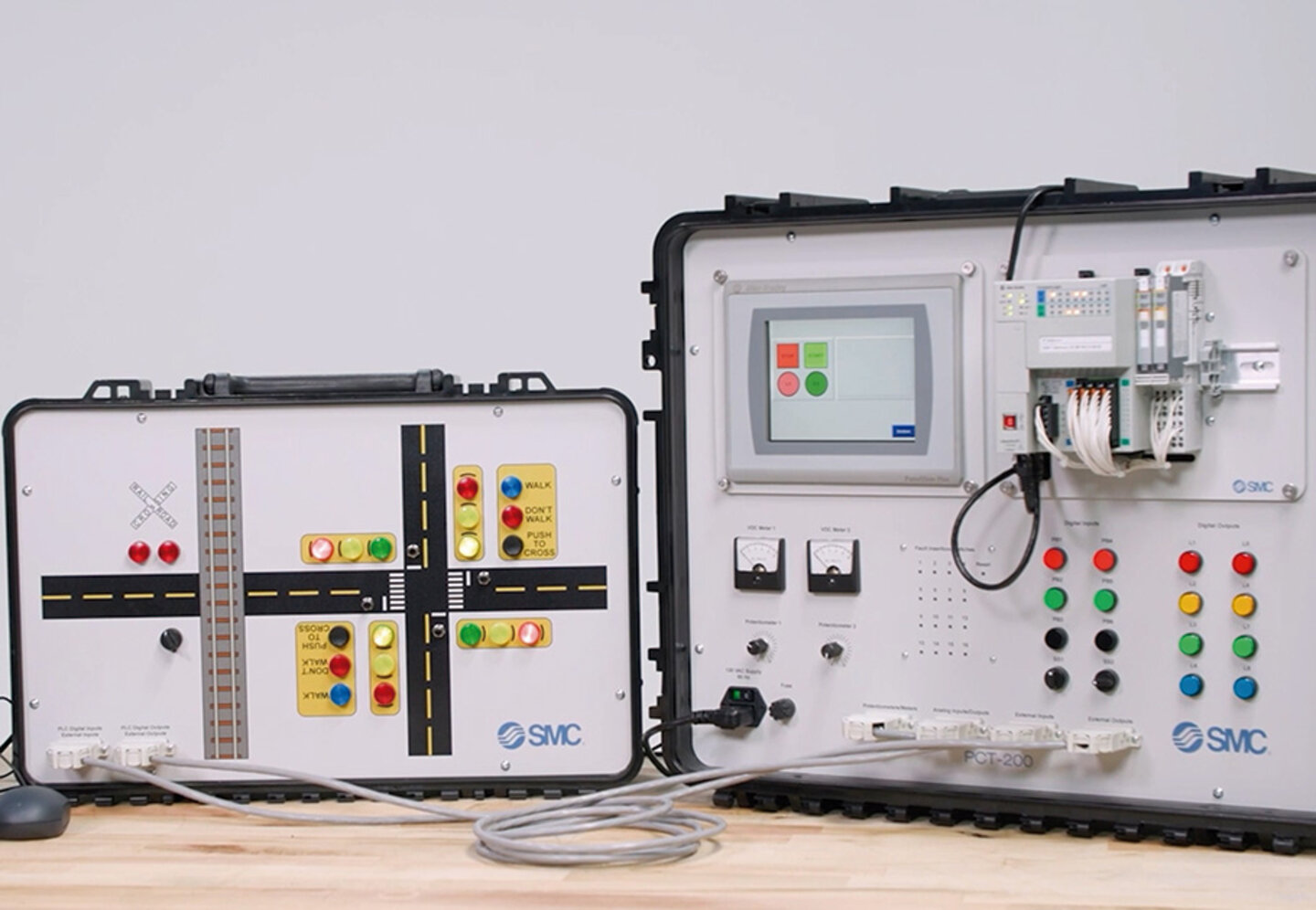

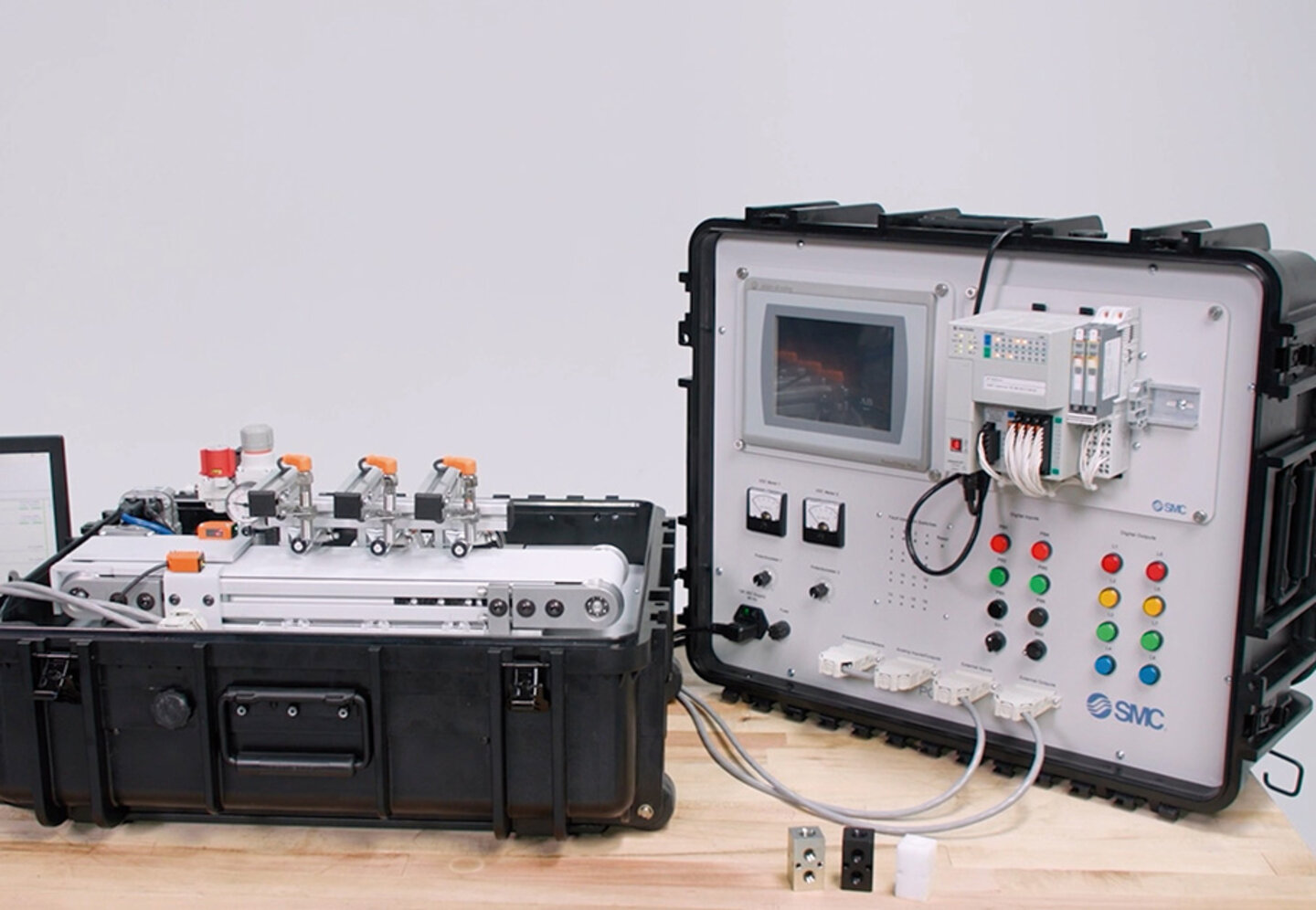

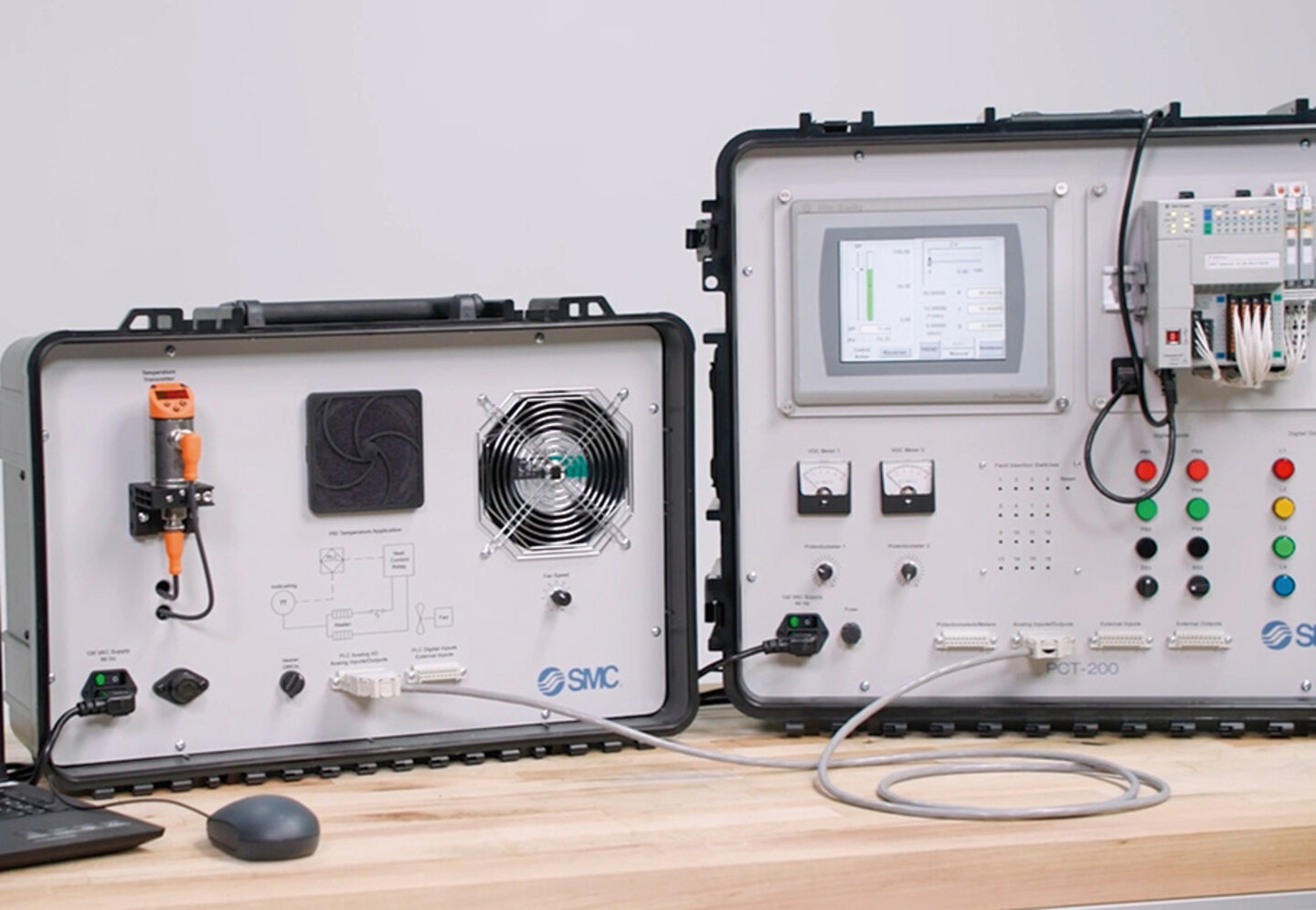

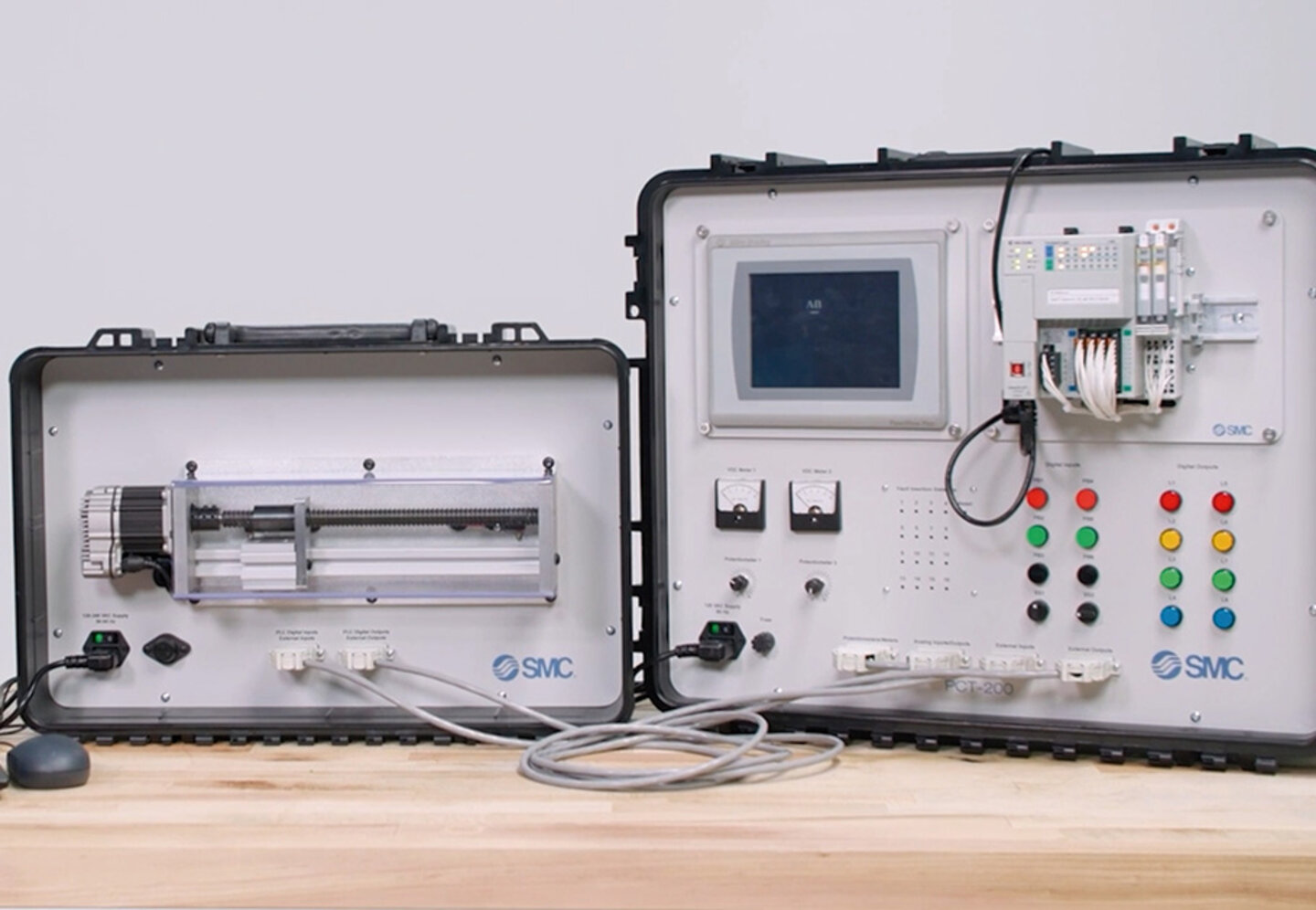

Optional applications
PCT-200 has a number of optional applications, as well as different PLCs and HMIs. Configure the trainer that best suits your needs.

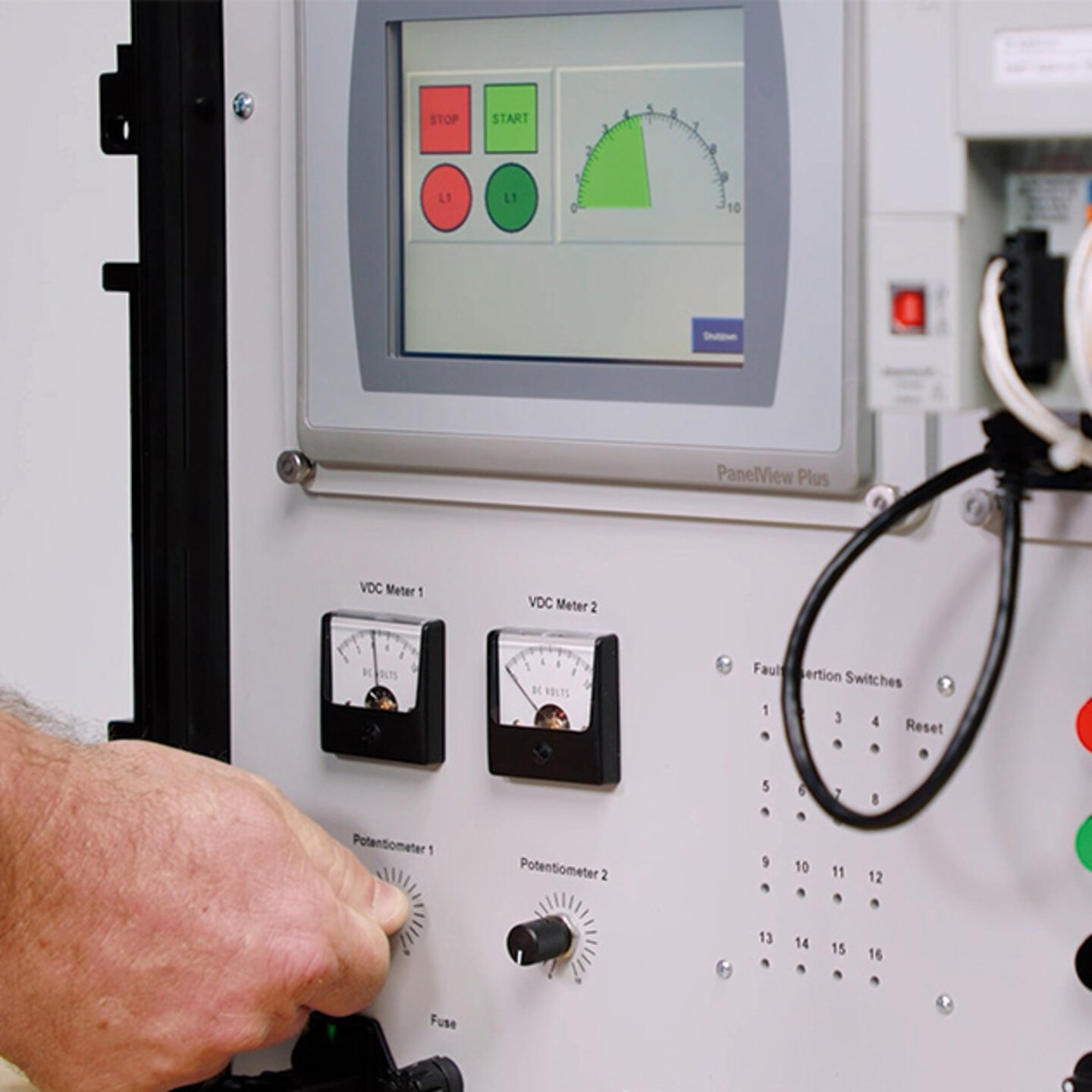

Topics covered
- Introduction to PLCs
- Controller Communications
- PLC Project Development
- Monitoring Input/Output Data
- PLC Addressing
- Relay Type, latching, timer, counter Instructions
- Math, Data Manipulation Instructions
- Program Control Instructions
- Analog Devices
- Introduction Human Machine Interface
- HMI Communications
- HMI Project Development
- Screen Creation and Navigation
- Text, Button and Switch Objects
- Numeric Displays and Entry
- Controller Communications
- PLC Project Development
- Monitoring Input/Output Data
- PLC Addressing
- Relay Type, latching, timer, counter Instructions
- Math, Data Manipulation Instructions
- Program Control Instructions
- Analog Devices
- Introduction Human Machine Interface
- HMI Communications
- HMI Project Development
- Screen Creation and Navigation
- Text, Button and Switch Objects
- Numeric Displays and Entry
Programmable Controlers
An electronic control system and associated instrumentation used for industrial process control. Such as, supervisory control and data acquisition (SCADA) systems, or DCSs, and programmable logic controllers (PLCs).
HMI
The space where interactions between humans and machines occur. The goal of this interaction is to allow effective operation and control of the machine from the human end, while the machine simultaneously feeds back information that aids the operators' decision-making process.
Industrial Communications
Industrial communication refers to a data transmission system designed to enable communication between field devices, such as sensors, actuators, and controllers, and the monitoring and control systems in industry.
Distributed I-O
Distributed I/O is a system architecture that distributes input/output modules near various field devices and connects them to a central controller (such as PLC or DCS) through a network. Unlike traditional centralized I/O systems, distributed I/O systems distribute I/O functions to various nodes and realize data transmission and control through industrial Ethernet, fieldbus or wireless communication.
Sensors
A sensor is a device, module, machine, or subsystem that detects events or changes in its environment and sends the information to other electronics, frequently a computer processor. With advances in micromachinery and easy-to-use microcontroller platforms, the uses of sensors have expanded beyond the traditional fields of temperature, pressure and flow measurement.
Distribution Panel
Is a component of an electricity supply system that divides an electrical power feed into subsidiary circuits while providing a protective fuse or circuit breaker for each circuit in a common enclosure.

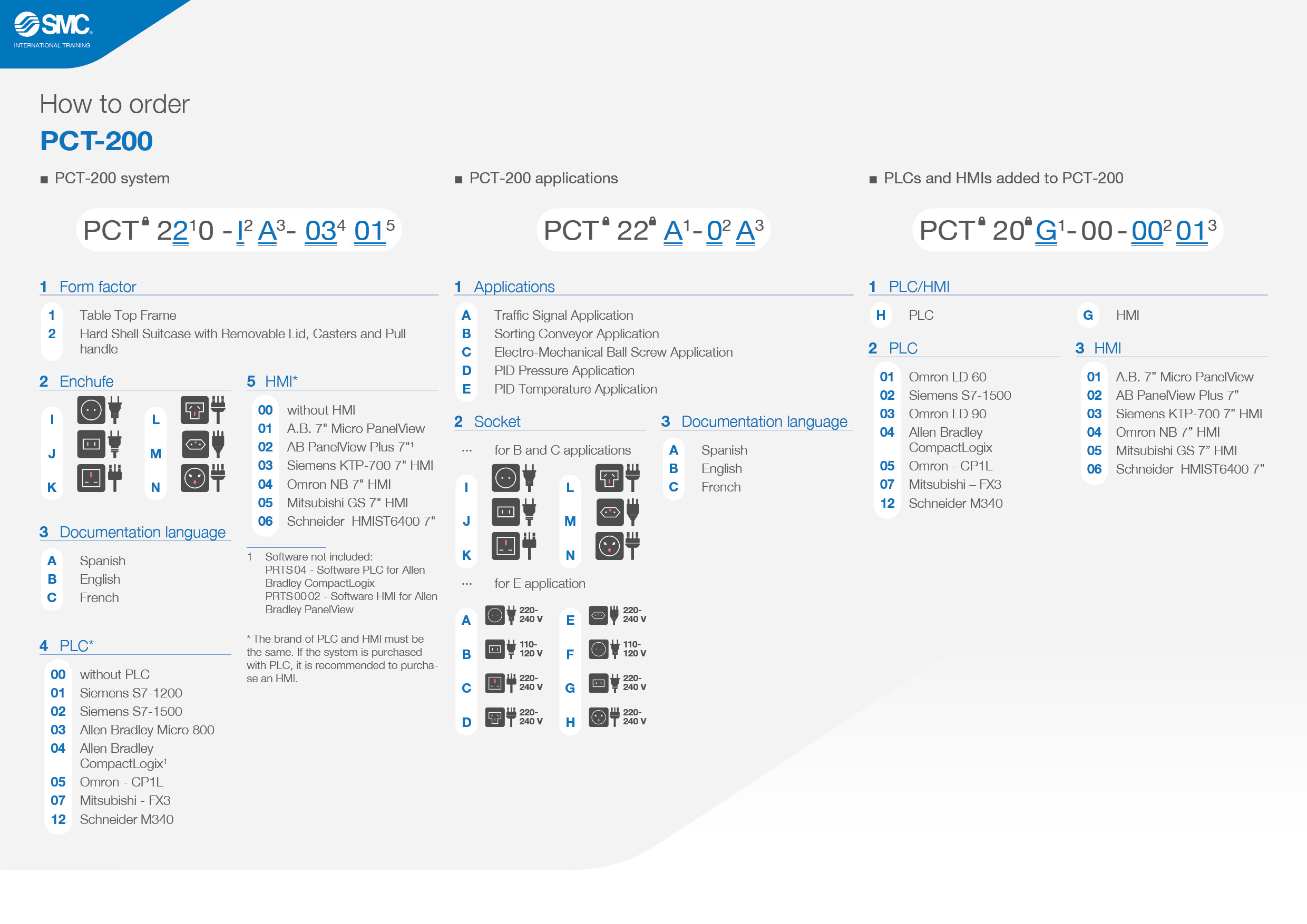

Product configurator
Do you want to request a quote on this product and get the specifications and technical descriptions of it?
Configure your ideal system through our product configurator and get all the related information in just a couple of clicks.
