BEMATE-200 - Your basic electricity mate

The BEMATE-200 Your Basic Electricity Mate provides hardware for hands-on activities and the study of DC, AC and Solid State fundamentals. All devices are permanently mounted and can be quickly connected in a variety of configurations via banana Jack connectors. Users will be introduced to the function and use of various devices and circuits. In addition, test equipment and fault insertion activities will allow for development of troubleshooting skills. It includes six selectable fault switches.

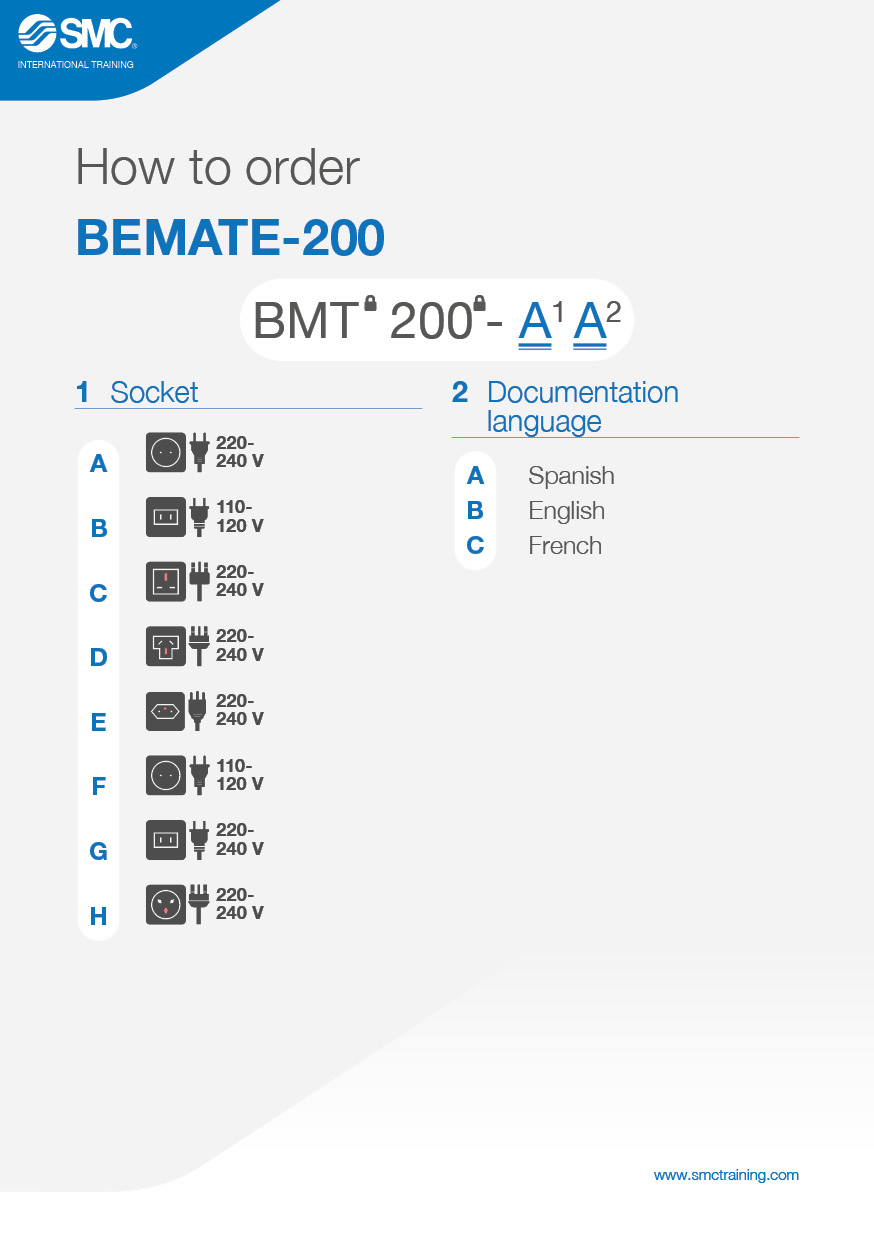

How to order

The system includes…

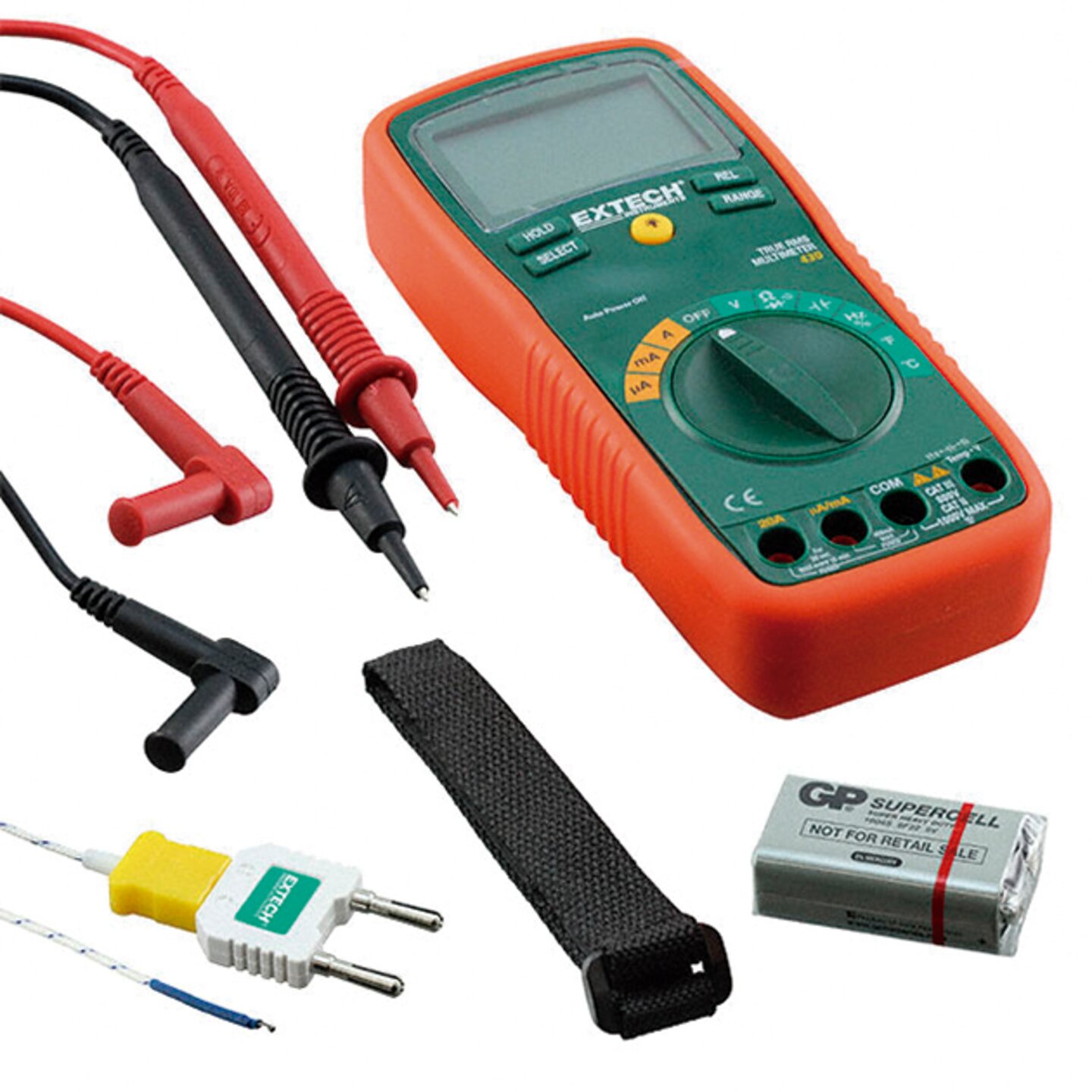

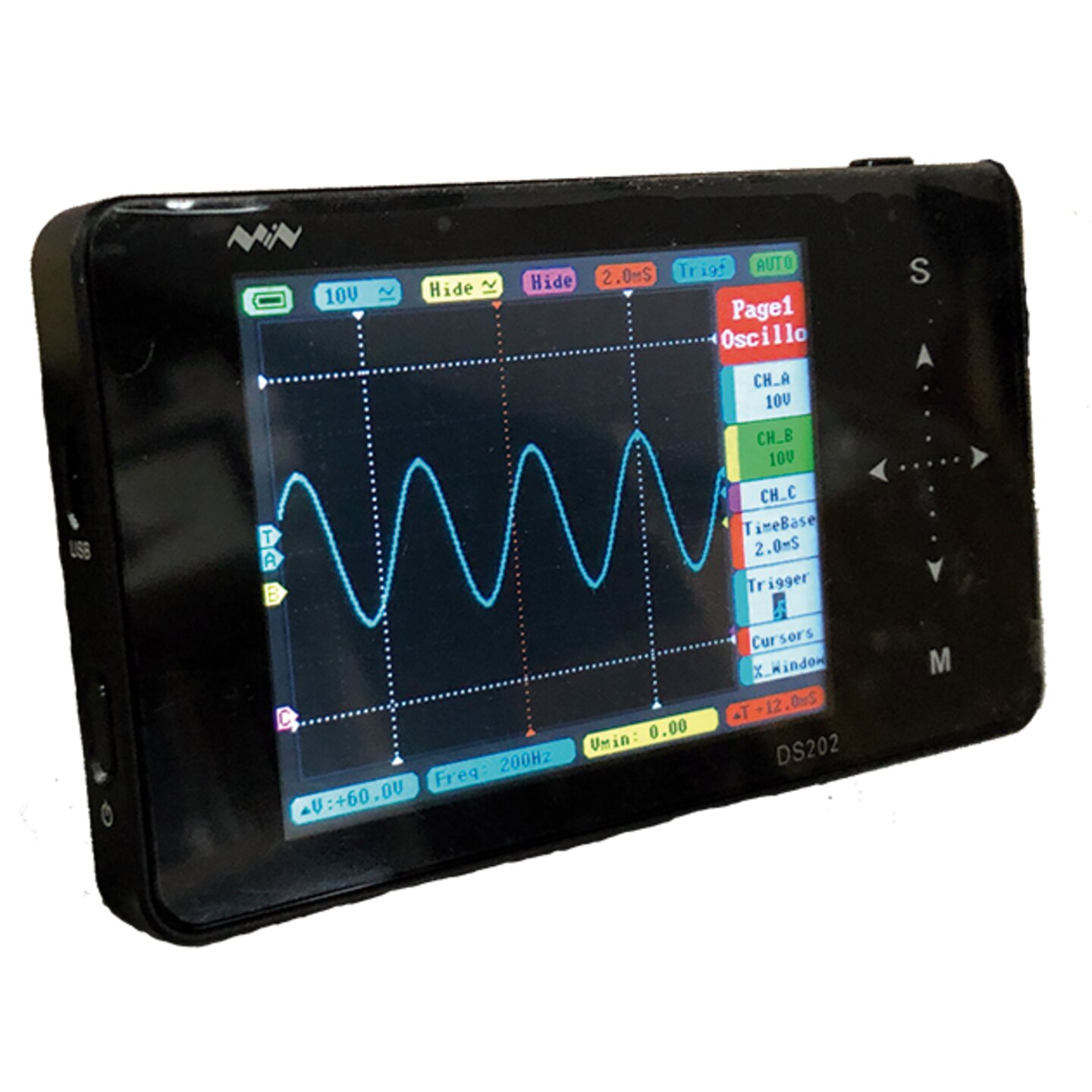

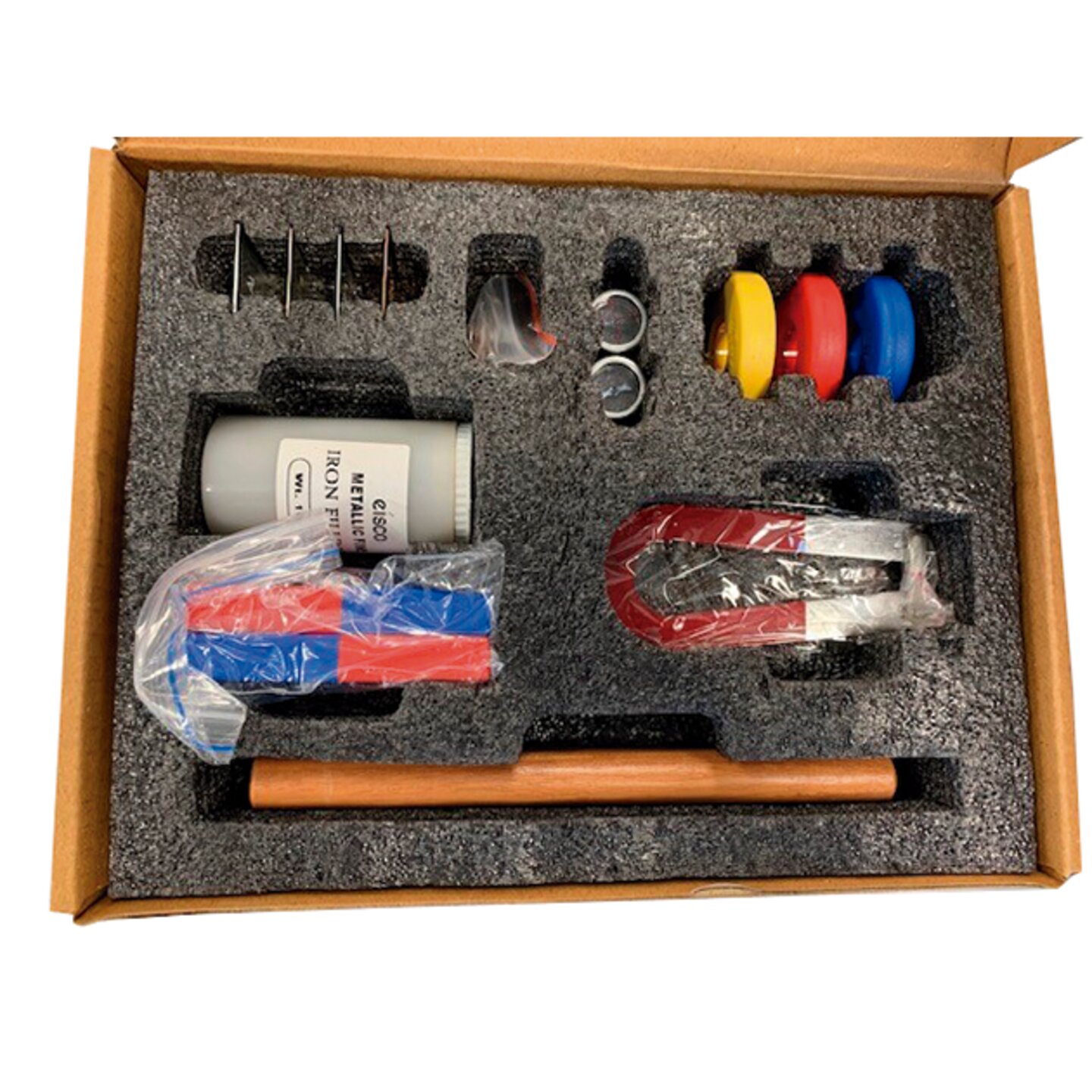

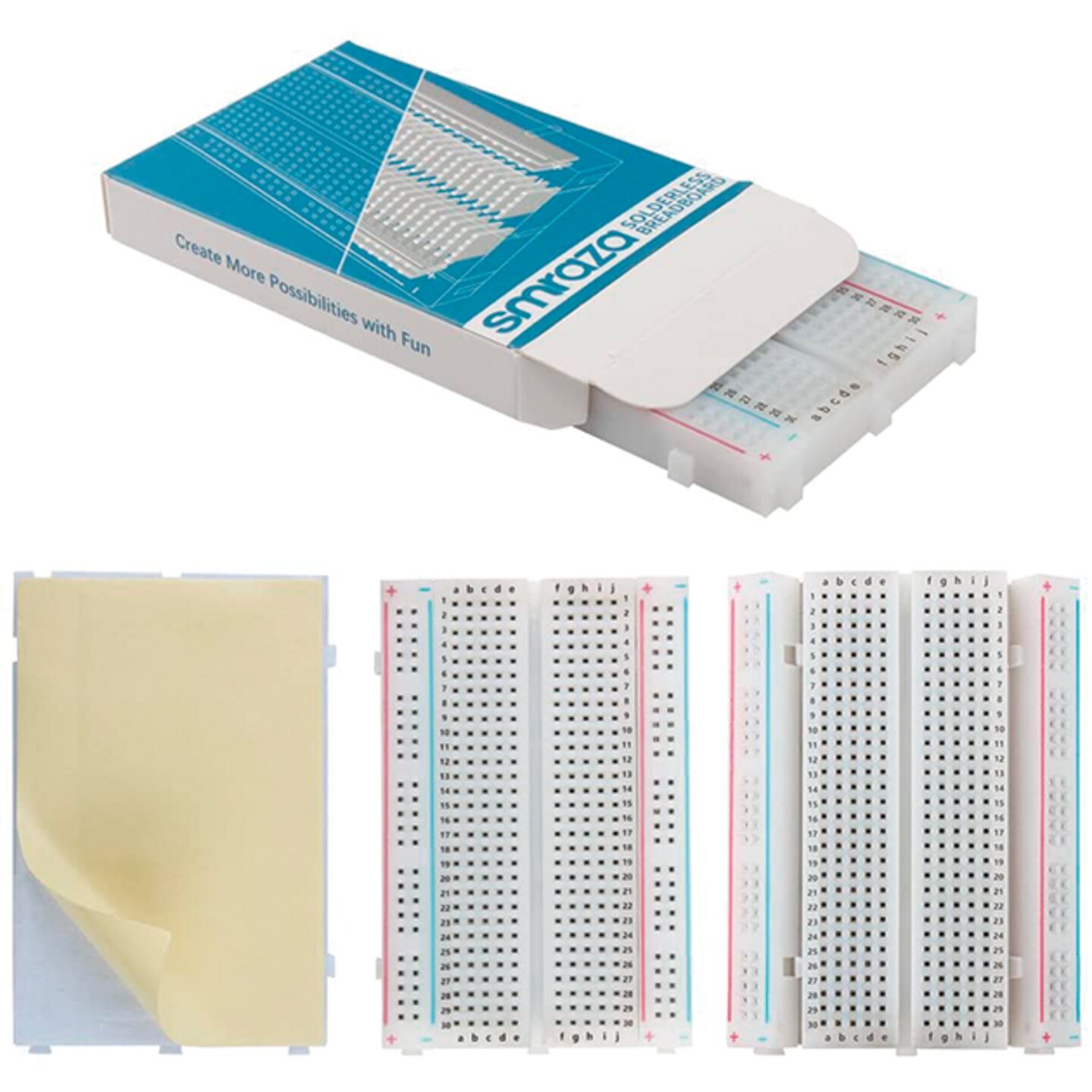

The system is presented in hard shell suitcase with removable cover, pull handle and casters. It includes six selectable fault switches. Also included: - Digital Multi-meter - Two channel Handheld Digital Oscilloscope - Breadboard kit - Electromagnetism kit

Practical activities and study of basic electrical knowledge

Covers essential topics in electricity such as electrical quantities and laws, basic circuits, as well as the most commonly used components and test instruments.

Easy to use

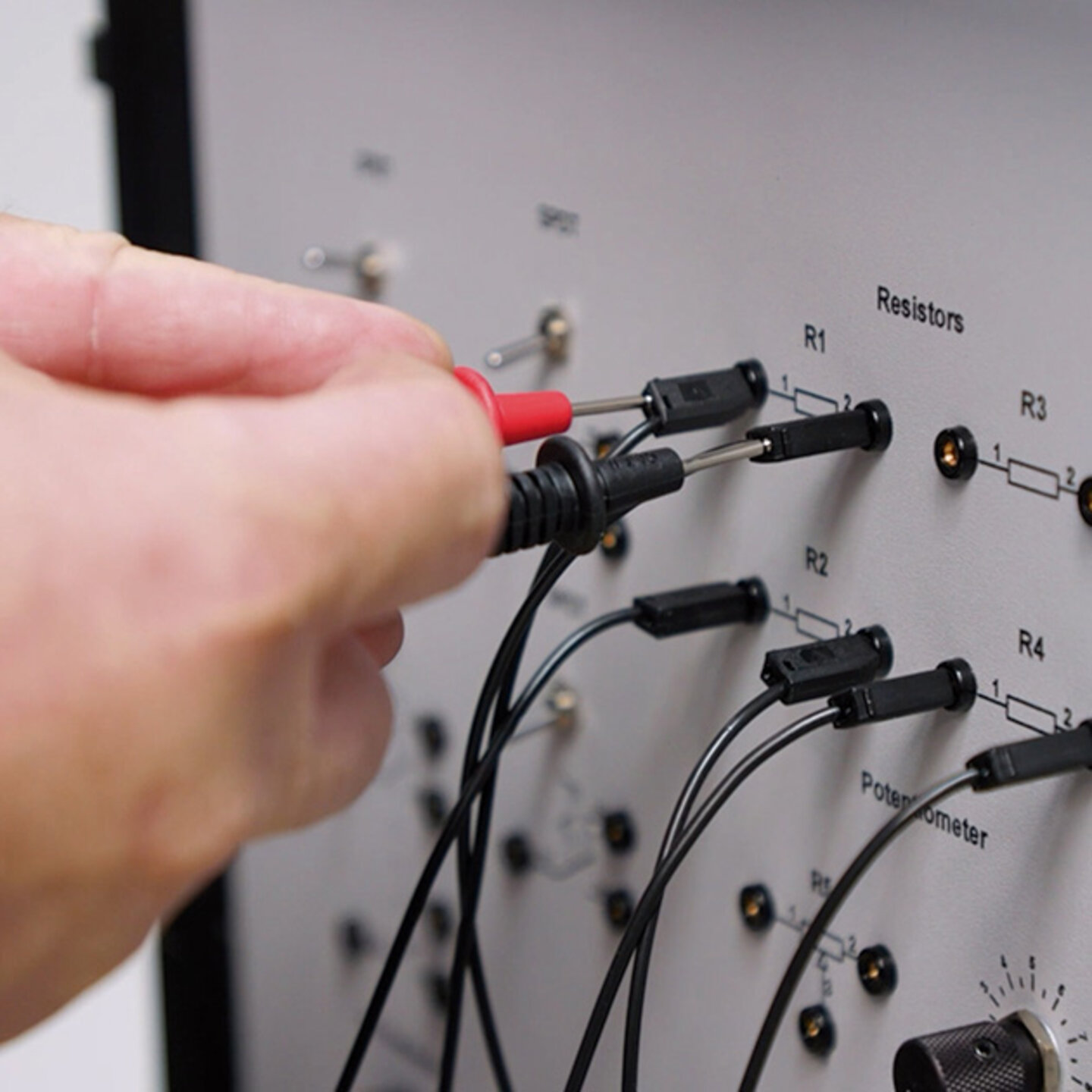

The assembly is simple, as all devices are fixed-mounted and connections are made using banana plugs. It also includes a practice manual for student and teacher.

Development of fault diagnosis skills

Includes 6 fault switches to simulate faults in the circuit, enabling the development of fault diagnosis skills.

Easy to transport

The equipment is contained in a case with removable lids, handle and wheels.

Complete set

It includes other devices such as a digital multimeter, digital oscilloscope, prototyping board and electromagnetics kit. Everything necessary to develop the practices in the manual.

Optionals

BEMATE-200 has a series of optional extras.

See optionals

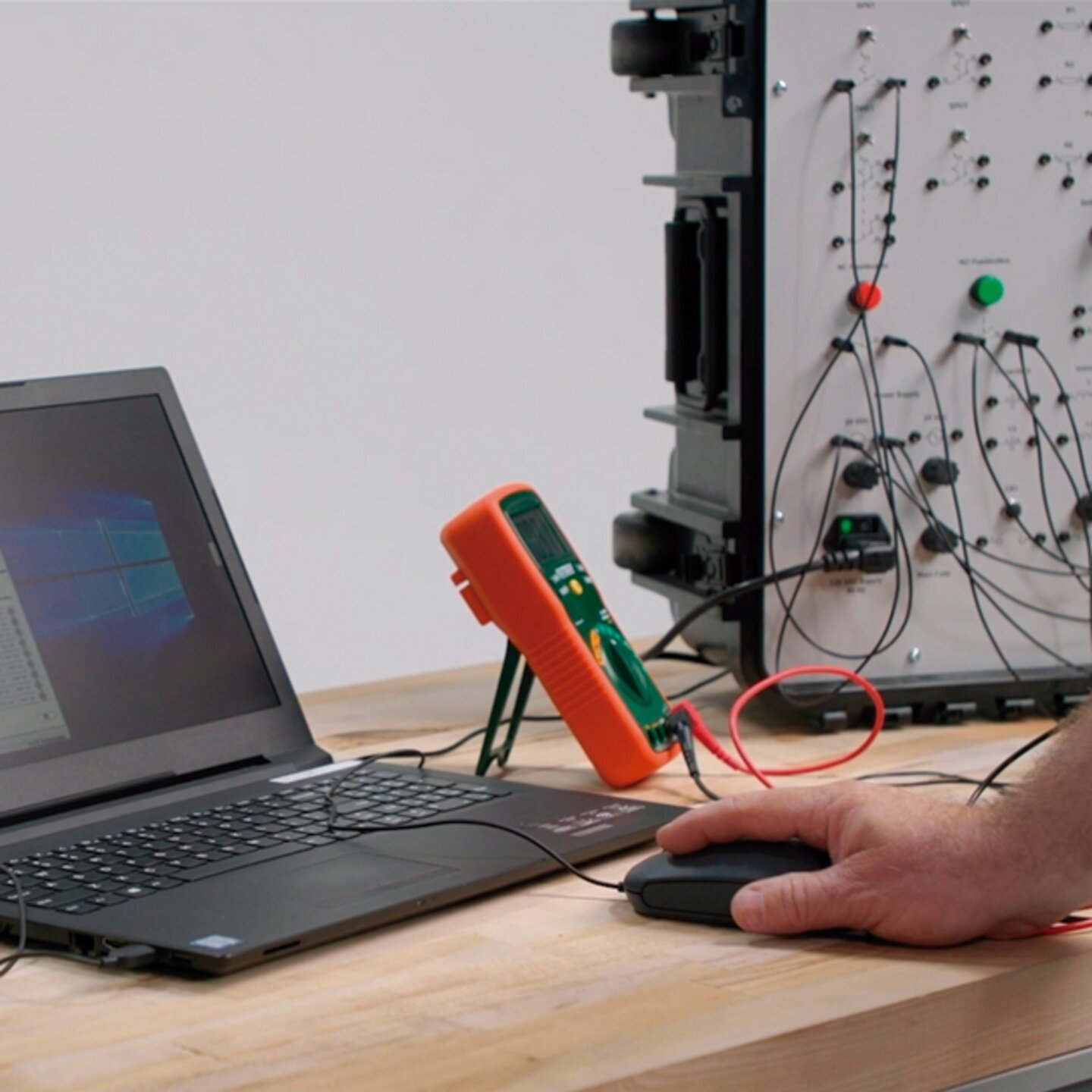

Topics covered

- Electrical Quantities and Laws (Current, Voltage, Resistance, Power, Ohm's Law, Kirchhoff’s Voltage and Current Law)
- Basic Circuits (Power Sources, Conductors, Control Devices, Electrical Loads, Over-current Protection Devices)
- Test Equipment and Instruments (Ohmmeter, Ammeter, Voltmeter, Oscilloscope)
- Resistors (Fixed, Variable)
- Switches (SPST, SPDT, DPDT, Pushbuttons, Selector Switches)
- Series, Parallel and Combination Circuits
- Magnetism
- Inductors
- Relays
- Transformers
- Capacitors
- Semiconductor (Fundamentals, Diodes, Half-wave Rectifier, Full-wave Rectifier)
- Troubleshooting Circuits

Electricity

Electricity technology refers to the generation, transmission and distribution of electrical energy for use in various fields, such as households, industries and electronic devices. It uses different energy sources, such as solar, wind, hydro and nuclear, to produce electricity efficiently and sustainably. It also includes the development of systems and devices that optimise the consumption and management of electrical energy.
